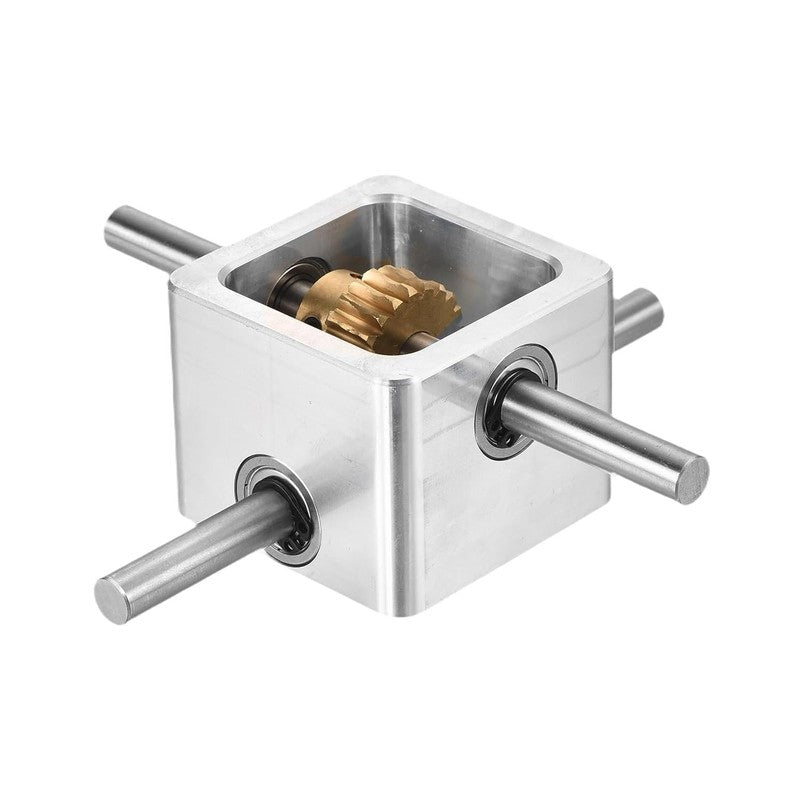

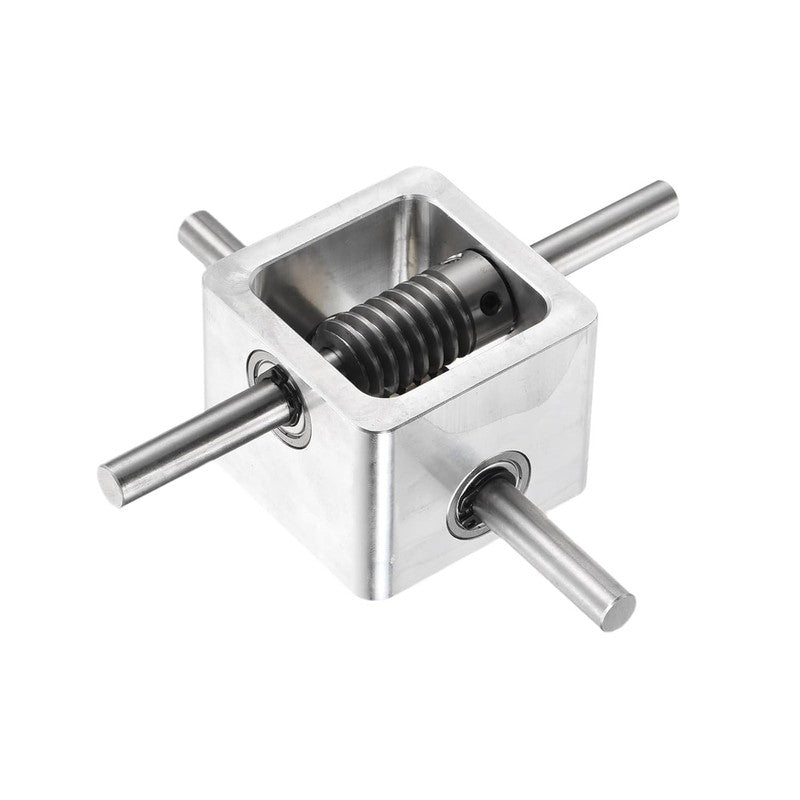

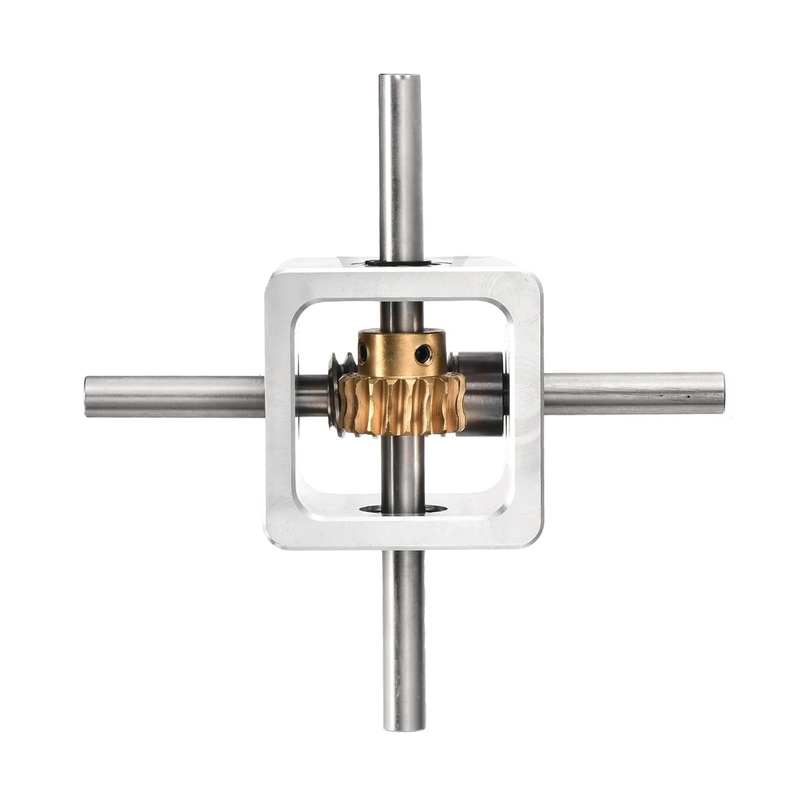

90 Degree Worm Gearbox 1:20 Reduction Gearbox 8mm Shaft Aluminium DIY Module Kit

Improve the flexibility of simple mechanical projects with this 90 Degree Right Angle Worm Gearbox, designed to provide a convenient change of direction and controlled mechanical movement.

The gearbox uses a reduction arrangement to transfer rotational movement through a right-angle configuration. This makes it useful for simple steering mechanisms, corner-drive applications, mechanical prototypes and various DIY projects where a compact right-angle transmission is required.

The aluminium frame provides a practical balance of strength and weight, while the metal gearing and shaft are designed for dependable mechanical operation in suitable applications.

This gearbox can be incorporated into a variety of custom mechanical assemblies where controlled rotation and a right-angle drive are required.

Key Features

• 90 Degree Right Angle Design – Changes the direction of rotational movement
• 1:20 Reduction Ratio – Provides significant rotational speed reduction
• 8mm Shaft Bore – Designed for compatible shaft applications
• Metal Gear Construction – Provides durable mechanical engagement
• Aluminium Housing – Lightweight frame suitable for DIY assemblies
• Smooth Mechanical Transmission – Designed for controlled rotation and torque transfer
• Versatile DIY Application – Suitable for simple mechanical projects and prototypes
• Compact Gearbox Design – Practical for custom mechanical installations

Suitable Applications

This right-angle worm gearbox can be used for a range of simple DIY mechanical applications, including:

• Custom steering mechanisms
• Right-angle drive projects
• Mechanical prototypes
• Robotics projects
• Model engineering
• DIY machinery
• Custom transmission mechanisms
• Educational mechanical projects

Important Information

This is intended as a simple mechanical steering/transmission gearbox. It is not designed for high-torque or high-speed CNC applications.

Please make sure the gearbox is suitable for your intended application and operating requirements before purchase.

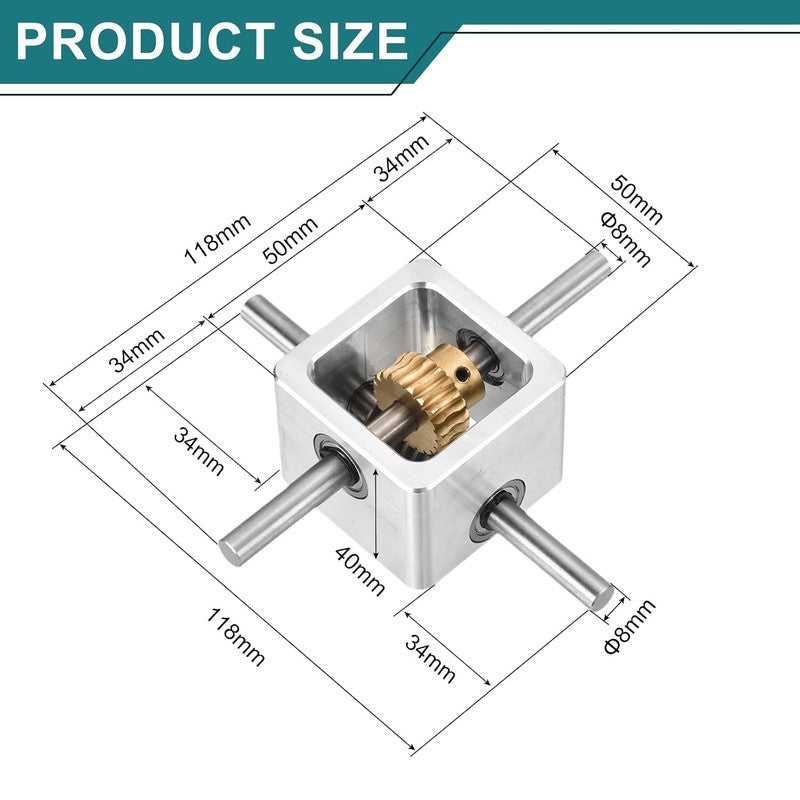

Item Specifics

Type: Worm Gearbox
Design: 90 Degree Right Angle

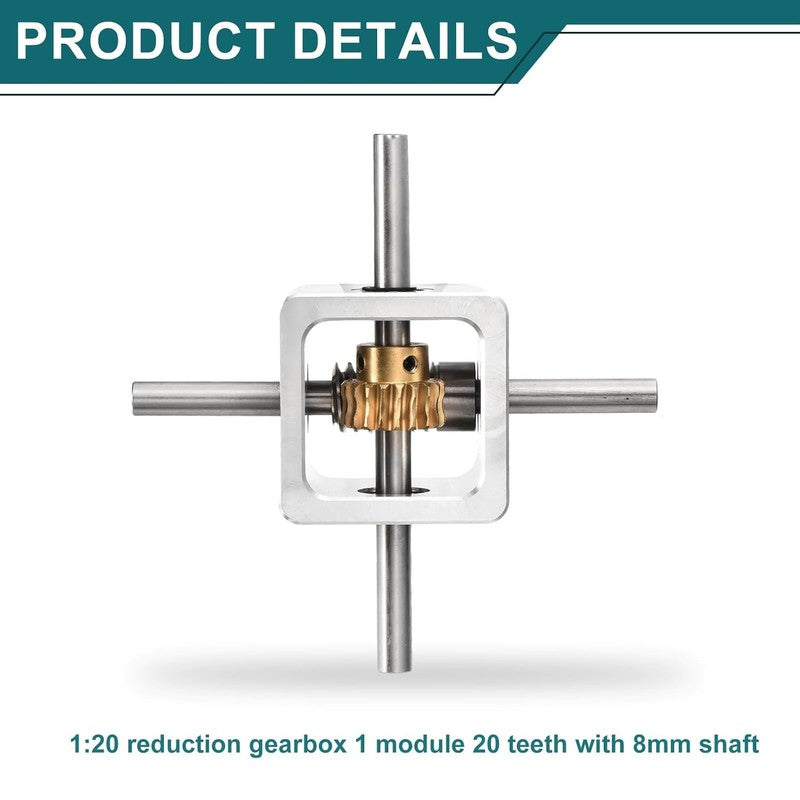

Reduction Ratio: 1:20
Module: 1
Gear Teeth: 20

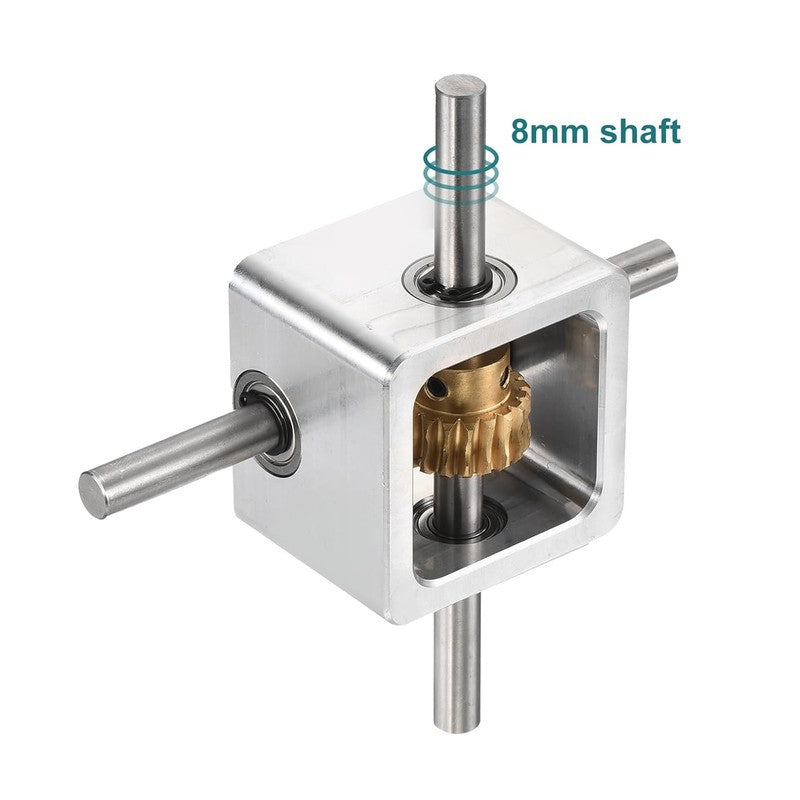

Shaft Bore: 8mm
Frame Material: Aluminium Alloy
Gear Material: 45 Carbon Steel
Shaft Material: Stainless Steel
Application: DIY Mechanical Projects
Transmission Type: Worm Gear
Function: Right Angle Power Transmission
Package Quantity: 1

What's Included

1 × 90 Degree Worm Gearbox

Please Note

For best results, ensure the gearbox is used within suitable mechanical loads and operating speeds. This product is intended for simple mechanical applications rather than high-speed or high-torque CNC machinery.
