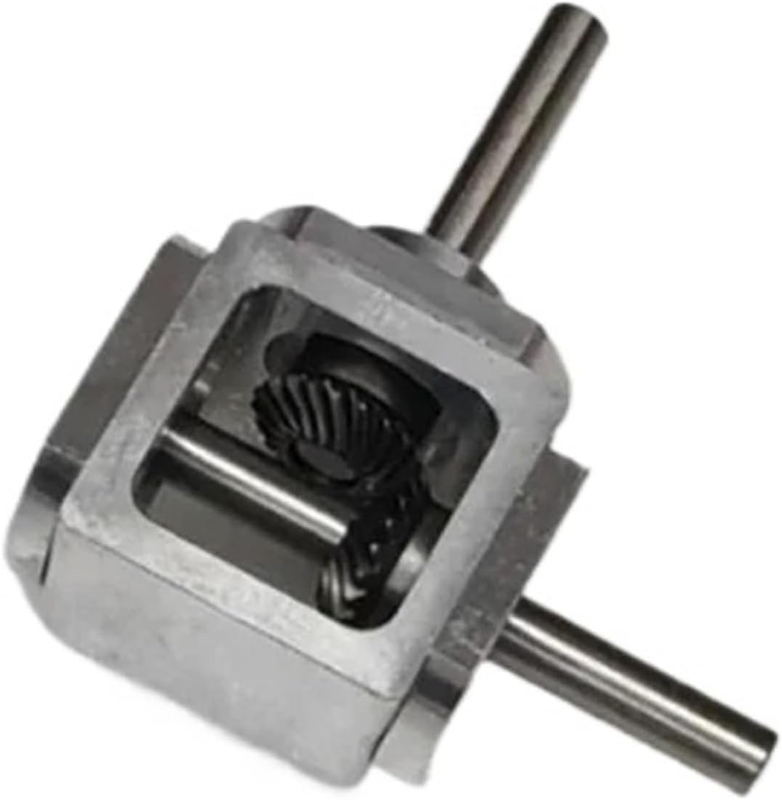

1:1 Right Angle Gearbox 20T 8mm Shaft Spiral Bevel Drive Gear Reducer Mechanical

Add reliable right-angle power transmission to your mechanical project with this compact 1:1 Right Angle Spiral Bevel Gearbox. Designed for DIY mechanical applications, it transfers rotational movement through a 90-degree drive while maintaining the same input and output speed.

The gearbox uses bevel gears to change the direction of rotation, making it useful for custom mechanisms, model engineering, robotics, machinery projects and other suitable mechanical assemblies.

The aluminium housing provides a practical lightweight structure, while the metal gears and stainless steel shaft are designed for dependable mechanical operation. The shaft can also be extended using a suitable coupling where required.

This gearbox is intended for simple mechanical applications and should not be used for high-torque or high-speed CNC applications.

Key Features

• 1:1 Gear Ratio – Maintains the same rotational speed between input and output
• 90 Degree Right Angle Drive – Changes the direction of mechanical rotation
• Spiral Bevel Gear System – Designed for smooth right-angle power transmission
• 20 Tooth Gear Design – Suitable for compatible Module 1 applications
• 8mm Shaft Bore – Designed for compatible shafts and mechanical assemblies
• Aluminium Housing – Lightweight construction for practical DIY projects
• Stainless Steel Shaft – Designed for strength and reliable mechanical operation
• Carbon Steel Gears – Provides durable gear engagement for suitable applications
• Extendable Shaft – Can be extended using a suitable coupling
• DIY Mechanical Application – Suitable for custom mechanisms and prototypes

Suitable Applications

This right-angle gearbox is suitable for a variety of simple mechanical projects, including:

• DIY Machinery
• Robotics Projects
• Model Engineering
• Mechanical Prototypes
• Custom Drive Systems
• Steering Mechanisms
• Right-Angle Transmission Projects
• Educational Engineering Projects
• Custom Mechanical Assemblies

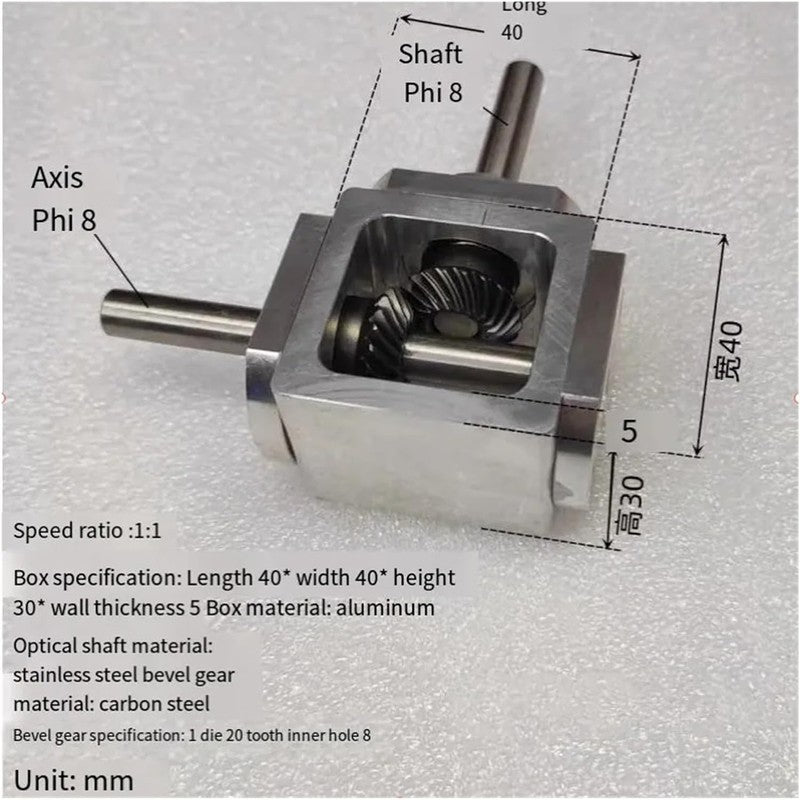

Item Specifics

Type: Right Angle Bevel Gearbox
Gear Ratio: 1:1
Gear Type: Spiral Bevel Gear
Gear Module: 1
Number Of Teeth: 20
Shaft Bore: 8mm
Housing Material: Aluminium Alloy
Shaft Material: Stainless Steel
Gear Material: Carbon Steel
Maximum Force: 20kg
Maximum Speed: 2000 RPM
Drive Angle: 90 Degree
Application: DIY Mechanical Projects
Transmission: Right Angle
Package Quantity: 1

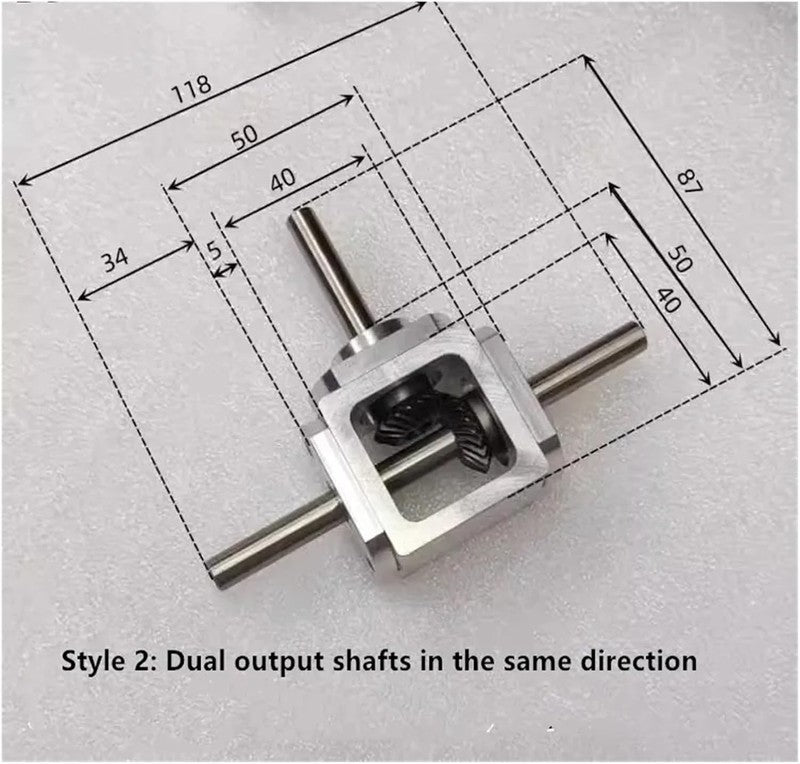

Product Dimensions

Length: 40mm
Width: 40mm
Height: 30mm
Wall Thickness: 5mm

What's Included

1 × 1:1 Right Angle Spiral Bevel Gearbox

Important Information

This is a simple mechanical transmission gearbox intended for suitable DIY and light mechanical applications.

It is not recommended for high-torque or high-speed CNC applications.

The aluminium housing may have minor cosmetic marks resulting from machining, punching or cutting. Such marks do not necessarily affect normal use.

There are no fixed mounting holes, so suitable mounting arrangements will need to be provided for your particular project. The gearbox is not waterproof.

Please ensure the shaft size, gear configuration, operating speed and intended load are suitable for your application before purchase.
