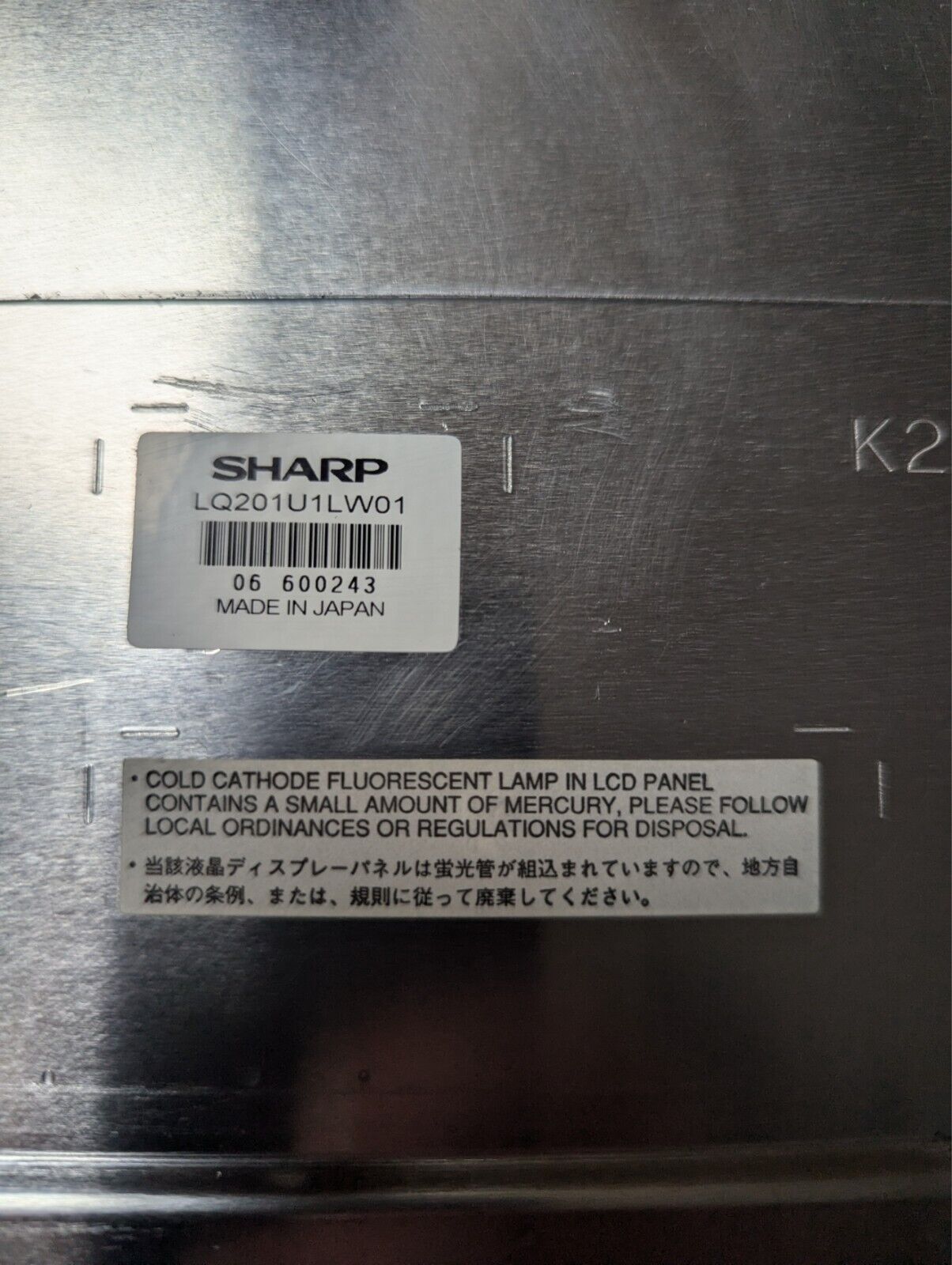

20.1'' 1600 RGB 1200 LCD Screen Panel 40 pins LVDS Sharp LQ201U1LW01

Brand

Sharp

Model P/N

LQ201U1LW01

Diagonal Size

20.1"

Panel Type

a-Si TFT-LCD, LCM

Resolution

1600(RGB)1200, UXGA  99PPI

Pixel Format

RGB Vertical Stripe

Active Area

408(W)306(H) mm

Bezel Opening

413.2(W)311.2(H) mm

Outline Dim.436(H)335(V)28.3(D) mm

TreatmentAntiglare, Hard coating (2H)

Luminance220 cd/m (Typ.)

Contrast Ratio350:1 (Typ.) (TM)

View DirectionSymmetry

Response Time5/20 (Typ.)(Tr/Td)

Viewing Angle85/85/85/85 (Typ.)(CR10)

Operating ModeASV, Normally Black, Transmissive

Support Color16.2M   69% NTSC

Light SourceCCFL  [6 pcs] , 50K hours , W/O Driver

Weight3.80Kgs (Max.)

Designed For

Frame Rate60Hz

Touch PanelWithout

Interface Type

LVDS (2 ch, 8-bit) , 40 pins Connector

Power Supply

12.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 C ; Storage Temperature: -25 ~ 60 C
