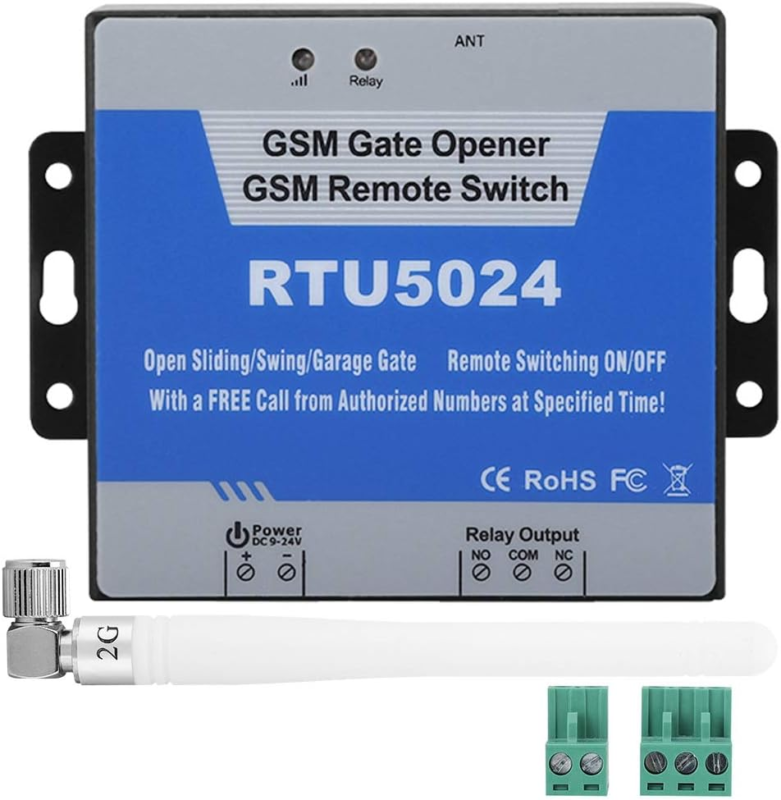

GSM Gate Opener Door Controller System RTU5024 GSM Remote Switch Access
GSM Gate Opener Door Controller System RTU5024 GSM Remote Switch Access
Couldn't load pickup availability
- Remote Relay: This GSM door opener has the function of a remote switch. It can be operated free of charge from anywhere with an authorized phone. There is no distance limit, which is very convenient.
- Supported frequency bands: 850/900/1800/1900MHz four frequency bands, which can be used in the global GSM network. No call charges, GSM relay switch answers the call from the authorized number, then performs an ON/OFF operation on the first ""ring"".
- GSM Gate Opener: Use caller ID for identification, unknown callers will be ignored. GSM gate opener Add or remove users via SMS text commands. There is no need to provide remotes or buttons for different users.
- Powerful: Up to 200 authorized phone numbers can be configured within a specified time. The relay operation acknowledgment returns a message to the panel or the authorized call in the number. This function can be edited by the user.
- Wide application: The switching time of the relay is programmable. Supports multiple applications for controlling switches such as doors, posts, fences, garage doors, shutters, doors, or machines.
Supported frequency bands
850/900/1800/1900MHz four frequency bands, which can be used in the global GSM network. No call charges, GSM relay switch answers the call from the authorized number, then performs an ON/OFF operation on the first "ring".
Powerful
Up to 200 authorized phone numbers can be configured within a specified time. The relay operation acknowledgment returns a message to the panel or the authorized call in the number. This function can be edited by the user.
Wide application
The switching time of the relay is programmable. Supports multiple applications for controlling switches such as doors, posts, fences, garage doors, shutters, doors, or machines.
Package List
1 * GSM Mobile Phone Access Controller

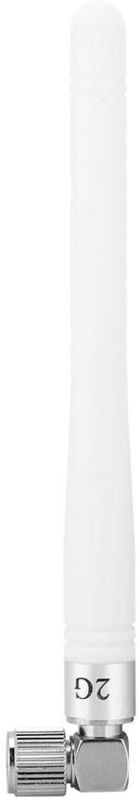

1 * Antenna
2 * Terminal
1 * English Manual
Specification
Model: RTU5024
GSM frequency: 850/900/1800 / 1900MHz
Digital output: NC / NO dry contact, 3A / 240VAC
DC power supply: 9-15VDC / 2A
Power consumption: 12V, maximum input: 50mA / average 25mA
SIM card: standard SIM card
Antenna: 50 SMA antenna interface
Temperature range: -20~ + 60C
Humidity range: relative humidity 90%
Package Size: about 13*9.5*3cm/5.12*3.74*1.18in
